Tapping Drill Chart - Tapping Chart - Metric Thread Chart - Imperial Thread Chart Number & Letter Drills All-in-One Identifier Chart & Helicoil Tapping Drill Chart

Tapping drill chart - tapping chart for metric threads, imperial threads - Tapping drill chart - tapping chart for Helicoil thread repair. Below is your all-in-one. Identify threads & number drills, letter drills, BSW, BA BSF, BSP, UNC, UNF, UNEF, NPT threads, tapping drill sizes and more all in one simple chart.

Detailed Thread Identification & Tapping Reference

This comprehensive table provides detailed information for identifying thread types, nominal sizes, tapping drill specifications across various thread standards including metric, imperial, British, and special threads.

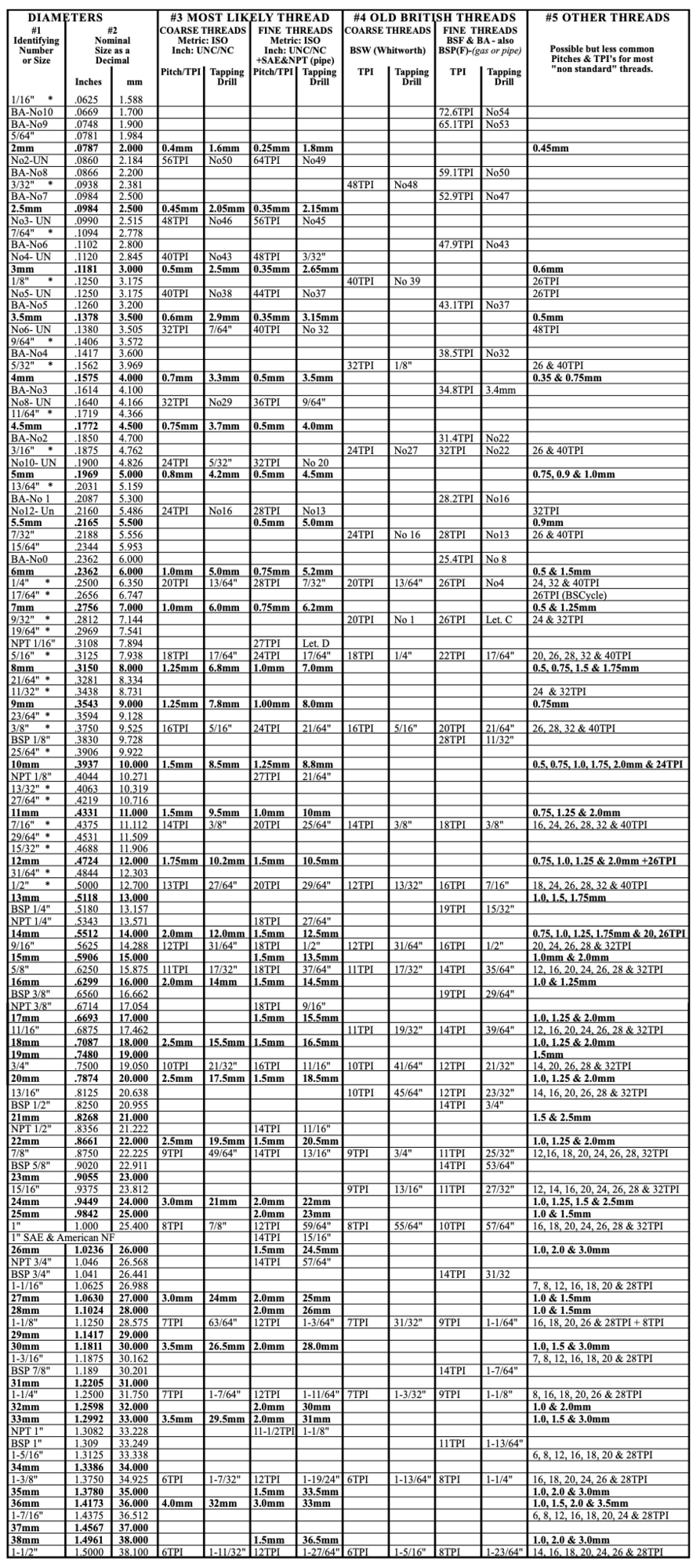

Detailed thread identification table showing diameters, thread types, tapping drill sizes for metric threads, British threads (BSW, BA, BSF, BSP), coarse threads, and fine threads with complete specifications

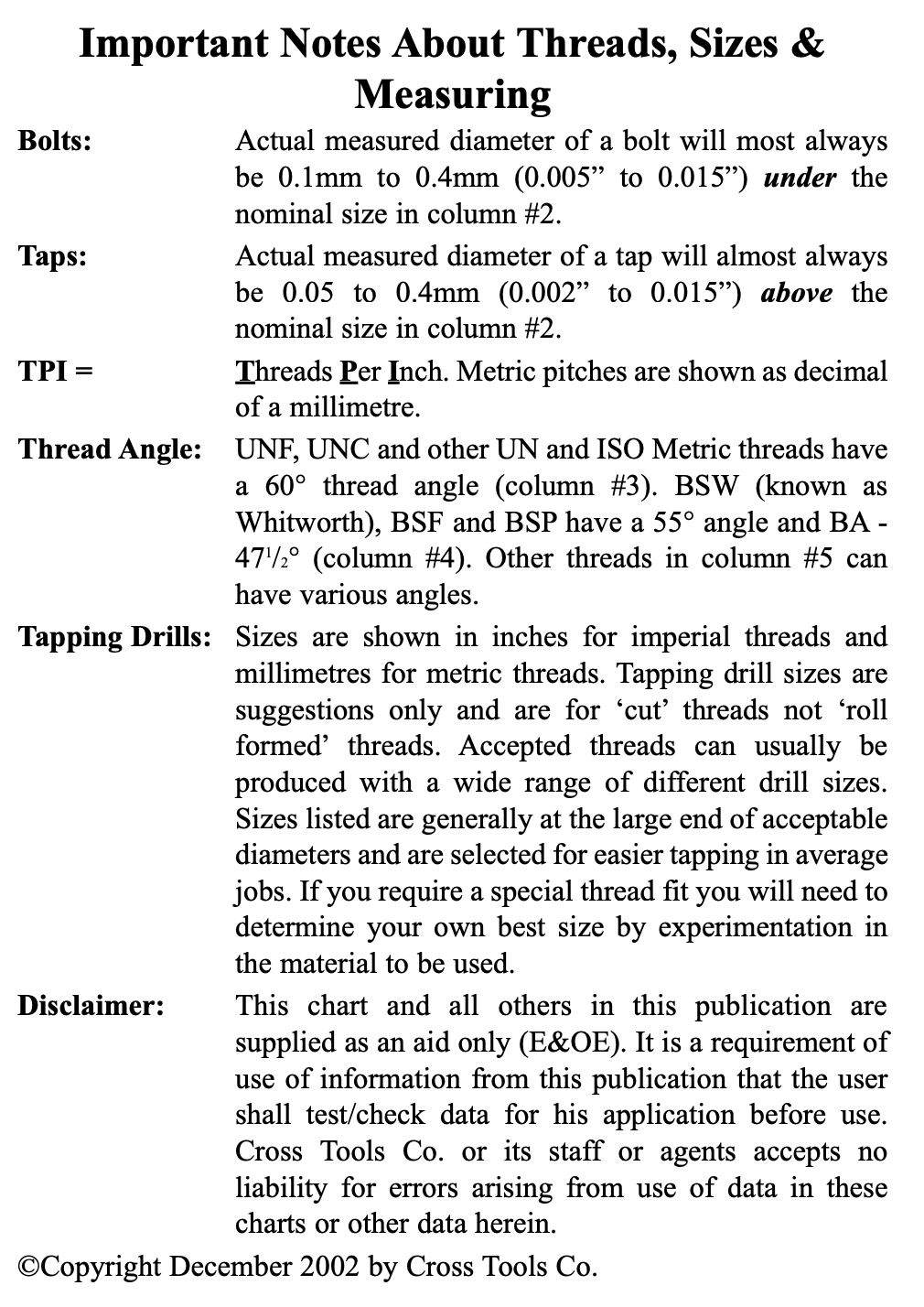

Important notes about threads, sizes and measuring - includes information about bolts, taps, TPI, thread angles, tapping drills, and disclaimer

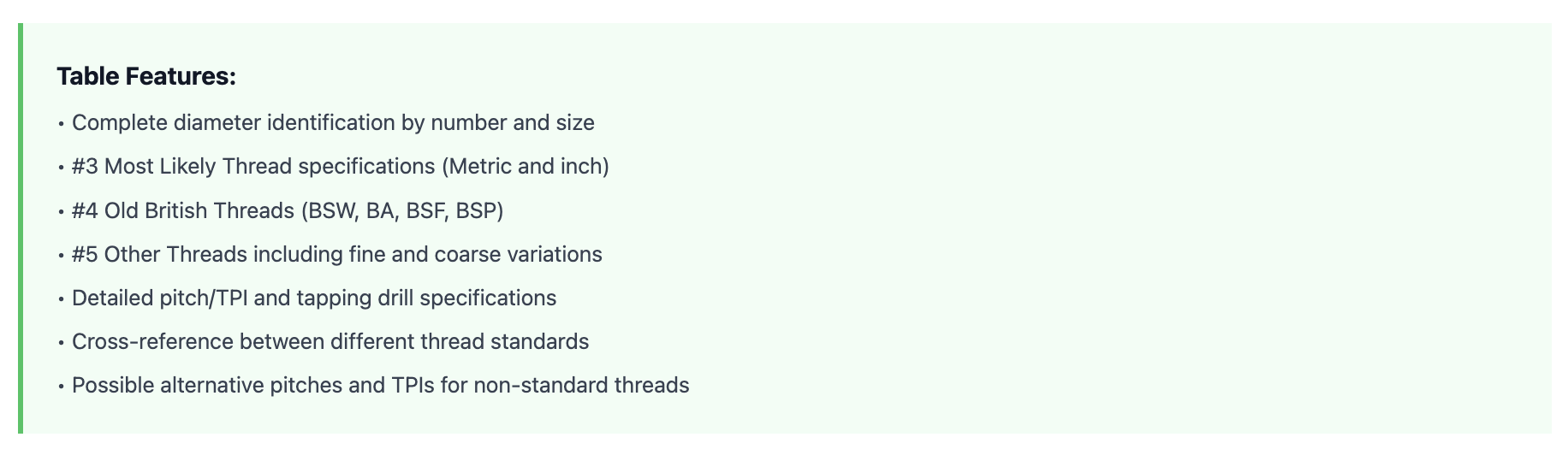

Table Features including complete diameter identification, thread specifications for metric, inch, British threads (BSW, BA, BSF, BSP), detailed pitch/TPI and tapping drill specifications, and cross-reference information
